PV Inverter Shelter

The PV Inverter Shelter protects inverters in all weather conditions. The PV Inverter Shelter offers a sturdy construction with a short assembly time. The shelters provide a perfect total solution for your cable management in combination with our other ValkCableCare products. It is available in five different configurations: Single, Double, Wall, Mini or Slim.

See all the applications in our catalogue

The PV Inverter Shelter Single is mounted on a wall with ground support, resulting in reduced weight hanging on the wall. This makes it suitable for installation on various types of walls. The shelter consists of the following components:

• Mounting Material PV Inverter Shelter Single inc. feet - article number 760627
• Base PV Inverter Shelter Single - article number 760619
• H-frame PV Inverter Shelter Single - article number 760623
• Roof PV Inverter Shelter - article number 760626

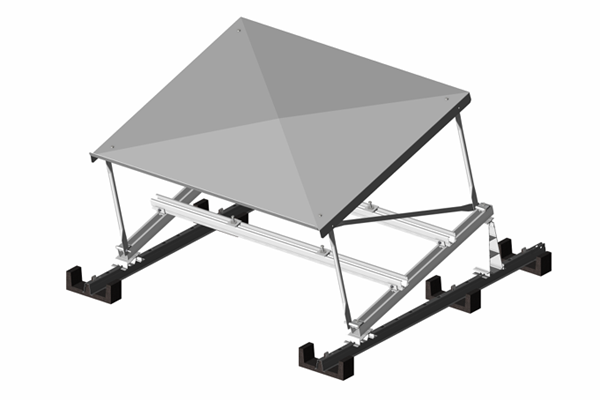

The PV Inverter Shelter Double is placed with ballast and can therefore stand completely on its own. This provides the advantage of maximum flexibility in choosing a location, as it can be placed virtually anywhere. This shelter consists of:

• Mounting Material PV Inverter Shelter Double inc. feet - article number 760628
• Base PV Inverter Shelter Double - article number 760620
• H-frame PV Inverter Shelter Double - article number 760624
• 2x Roof PV Inverter Shelter - article number 760626

The PV Inverter Shelter Wall is specifically designed for mounting on a wall. With only three components, installation is extremely fast and simple. This shelter consists of:

• Mounting Material PV Inverter Shelter Wall - article number 760629
• H-frame PV Inverter Shelter Wall - article number 760625
• Roof PV Inverter Shelter - article number 760626

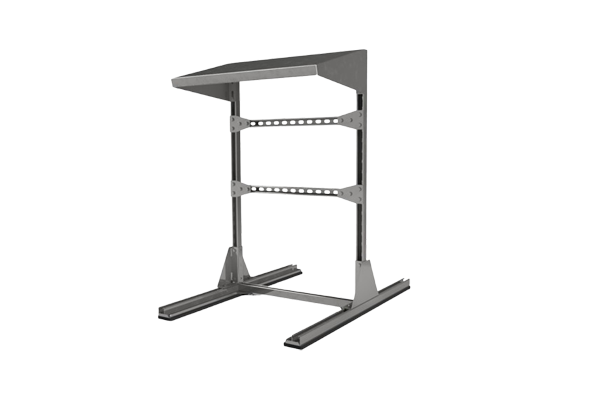

The PV Inverter Shelter Mini is a space-saving solution for PV installations where every square metre counts. Ideal for flat roofs with limited space, without compromising on functionality or ease of installation. This shelter consists of:

• Mounting material PV Inverter Shelter Mini - article number 760635
• Basic PV Inverter Shelter Mini - article number 760621
• H-frame PV Inverter Shelter Mini - article number 760622
• Roof PV Inverter Shelter Mini - article number 760634

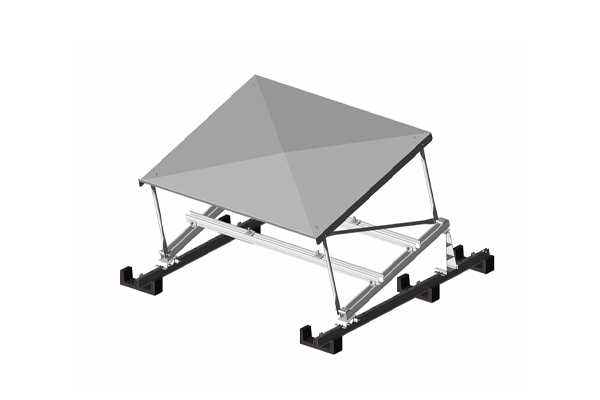

The PV Inverter Shelter Slim is a smart and affordable protection for inverters, built with our existing materials for optimal price, performance and ease of installation. The shelter consists of:

• Alu. Side++ profile L=1400 mm - article number 701701400
• Trapezoidal profile L=979 mm PV Inverter Shelter Slim - article number 7270979
• Support set PV Inverter Shelter Slim - article number 760701
• Roof PV Inverter Shelter Slim - article number 760702
• Mounting material PV Inverter Shelter Slim - article number 760703
• Galv roof carrier L=1500mm - article number 741801500
• Rubber tile carrier, click, 250x75x90mm ValkPro+ -article number 729622
• Rubber tile carrier, click, ValkPro+ PVC - article number 729629
